Knee Joint Implants


Since the first knee joint replacement nearly 50 years ago, continuous improvements in devices and surgical techniques have led to numerous breakthroughs in technology. The large number of different types of knee endoprosthetics with regard to fitting type, fixation, bearing couple, design and degree of coupling require defined test series for the approval process. Facilities in Orthoteck lab enable us to conduct these test with high quality.

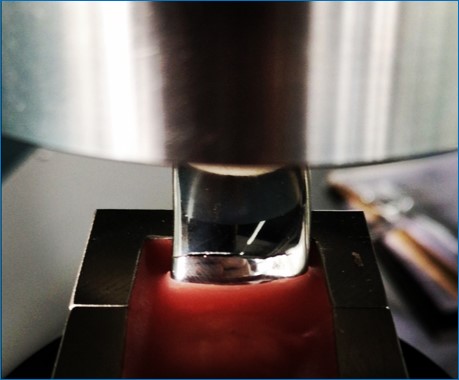

Wear and fatigue tests on knee joint implants

Test standard overview in the field of knee joint implant

Wear Test

ISO 14243-1: Implants for surgery -- Wear of total knee joint prostheses.

Part 1:Loading and displacement parameters for wear-testing machines with load control and corresponding environmental conditions for tests.

ISO 14243-2: Implants for surgery -- Wear of total knee joint prostheses Part 2: Methods of measurement.

ISO 14243-3: Implants for surgery — Wear of total knee joint prostheses, Part 3: Loading and displacement parameters for wear testing machines with displacement control and corresponding environmental conditions for test.

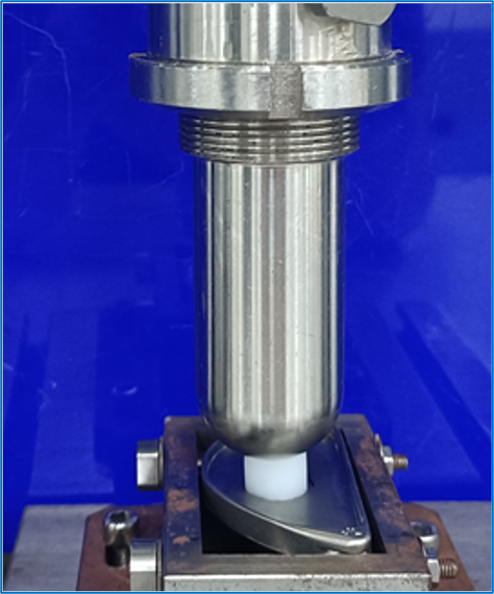

Fatigue Test of Baseplate/Bearing Fixation/Tray

ASTM F3140:Standard Test Method for Cyclic Fatigue Testing of Metal Tibial Tray Components of Unicondylar Knee Joint Replacements.

ISO 14879-1:  Implants for surgery - Total knee-joint prostheses - Part 1: Determination of endurance properties of knee tibial trays.

SO 21536:  Non-active surgical implants - Joint replacement implants - Specific requirements for knee-joint replacement implants.

ASTM F1800:  Standard Practice for Cyclic Fatigue Testing of Metal Tibial Tray Components of Total Knee Joint Replacements.

ASTM F2083: Standard Specification for Total Knee Prosthesis.


Petella Specification

ASTM F1672: Standard Specification for Resurfacing Patellar Prosthesis.


Constraint Test

ASTM F1223: Standard Test Method for Determination of Total Knee Replacement Constraint.


Mobile Bearing Dislocation  Test

ASTM F2722: Standard Test Method for Evaluating Mobile Bearing Knee Tibial Baseplate Rotational Stops.

STM F2723: Standard Test Method for Evaluating Mobile Bearing Knee Tibial Baseplate/Bearing Resistance to Dynamic Disassociation.

ASTM F2724: Standard Test Method for Evaluating Mobile Bearing Knee Dislocation.

ASTM F2083: Standard Specification for Total Knee Prosthesis.
